chocolate candy sugar coating machine
Price：￥
Specifications：
sugar coating machine

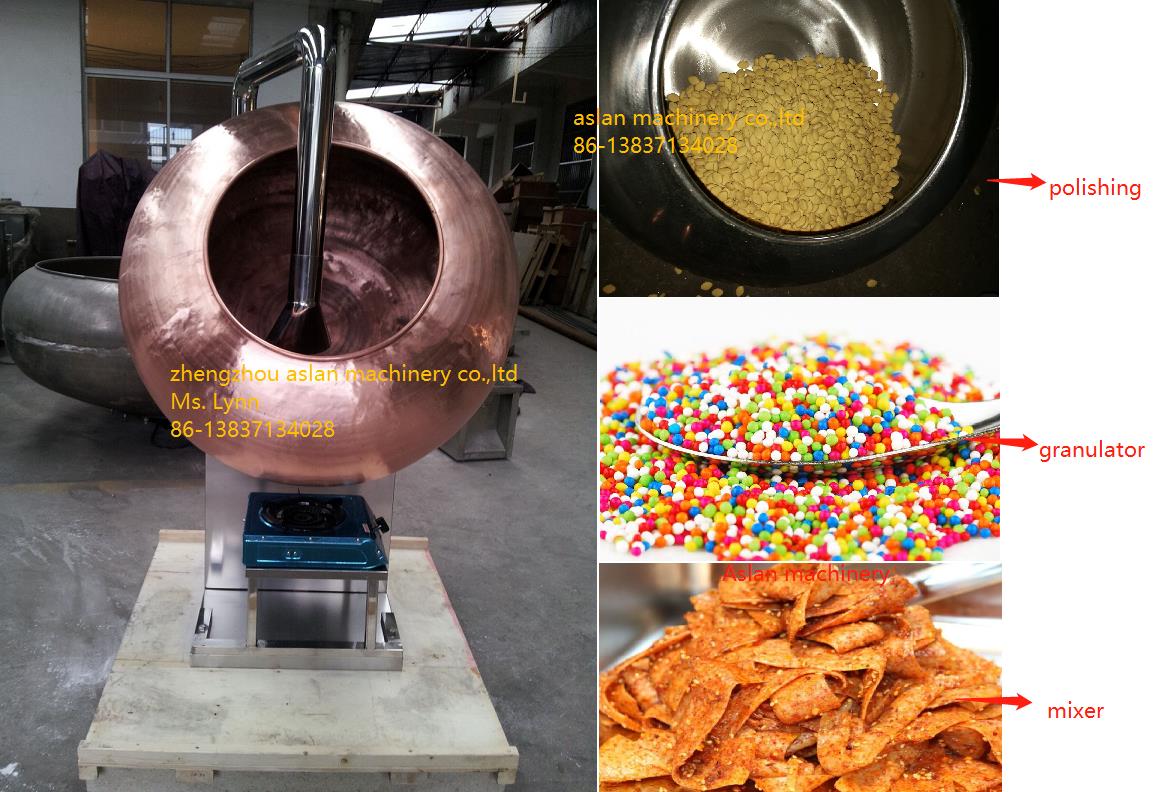

this machine function: sugar coating ----polishing--granulator .
This machine is mainly used for tablet pills candys and so on food.this machine function is to add sugar coating film on raw material outside. It also can used to shaping raw material into round ball shape , mixing material with other flavors, and polishing the raw material surface etc.
this machine can processing many kinds of foods, Such as:candy,chocolate , peanut ,nuts and so on , its also can be use adding flavor for producing pearl dumplings, and pelletizing the desiccant&aluminium hydroxide, porcelain ball making, etc.

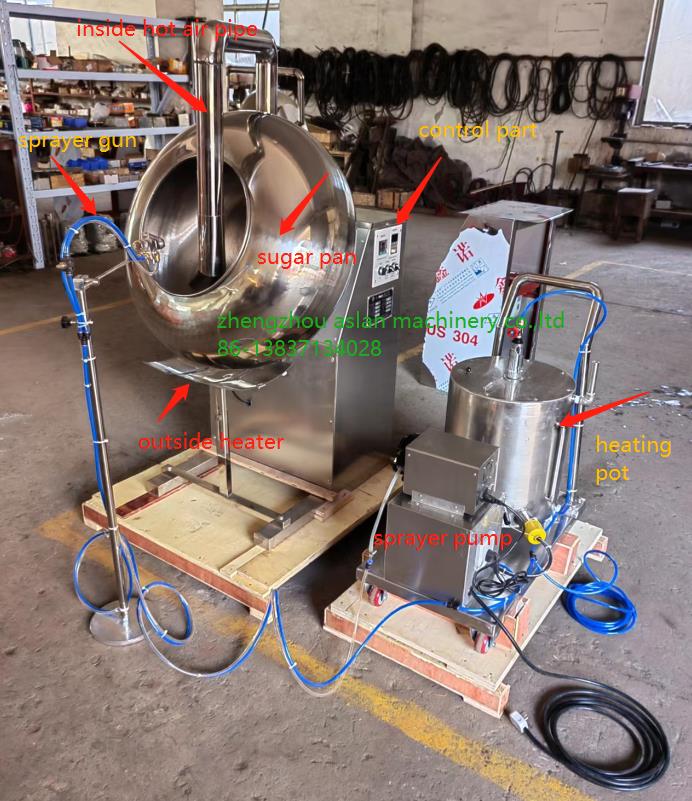

this sugar coating machine structure is durable.its consist of stainless steel frame, worm wheel box, coating pan, heating device, blower, electrical system, etc. The transmission process that the motor drive the worm wheel and worm via triangle belt make the coating pan rotate.Then the material erithe and revolve up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.
| model | pot diameter | capacity | rotation speed | power | air fan power | machine size |
| BY200 | 200mm | 1kg/time | 46r/min | 0.37kw | 0.075kw | 500*350*700mm |
| BY300 | 300mm | 2kg/time | 46r/min | 0.37kw | 0.075kw | 500*350*700mm |
| BY400 | 400mm | 5kg/time | 46r/min | 0.37kw | 0.075kw | 550*400*800mm |
| BY600 | 600mm | 15kg/time | 36r/min | 0.75kw | 0.06kw | 800*600*900mm |
| BY800 | 800mm | 30-50kg/time | 36r/min | 1.5kw | 0.12kw | 1000*800*1430mm |
| BY1000 | 1000mm | 50-70kg/time | 32r/min | 1.5kw | 0.12kw | 1100*1000*1560mm |
| BY1250 | 1250mm | 80-150kg/time | 28r/min | 3.0kw | 0.18kw | 1250*1200*1820mm |
| BY1500 | 1500mm | 200-300kg/time | 26r/min | 5.5kw | 0.37kw | 1500*1500*1980mm |
The detailed contents：
if you are interested in our sugar coating machine , welcome send inquire to us .86-13837134028
