Zhengzhou Aslan Machinery Co., Ltd.

Fiber /wool /carpet dryer machine

Price:¥

Specifications:

Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Aslan Jixie
Model Number:
ASL-HGJ15
Capacity:
20kg-300kg/batch
Name:
wool / carpet/ textile/ farbic /fiber dryer machine
Heating:
Steam Heating or electric heating
Voltage:
220v 380v 110v 240v
Certification:
ISO
Function:
Dry Washing
Usage:
Dry Cleaning Shops
Material:
Stainless Steel 304
power:
1.5-5.5kw
Guarantee:
1 year

The detailed contents:



Fiber /wool /carpet dryer machine / wool drying equipment / factory supply textile wool dryer





Machine working principle:



according to the principle of heat exchange. The machine make use of the exhausted heat by steam radiator and the suction fan suck in the air continuously, the produce a thermal cycling, which make the material in the drum turn over constantly, gradually drying.





Technical parameter:

Machine model

ASL-HGJ15

ASL-HGJ30

ASL-HGJ100

ASL-HGJ120

Max capacity (kg)

15

30

100

120

Drum dimension

(mm)

750*560

950*860

1320*1100

1500*1080

Drum speed

(r/min)

35

32

30

28

Steam pressure

(Mpa)

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

Motor power

(kw)

0.75

1.1

2.2

2.2

Fan power (kw)

0.75

1.1

1.5*2

1.5*2

Machine size

(mm)

700*1100*1340

1100*1450*1900

1500*1800*2360

1600*1800*2360

Weight (kg)

313

396

672

875

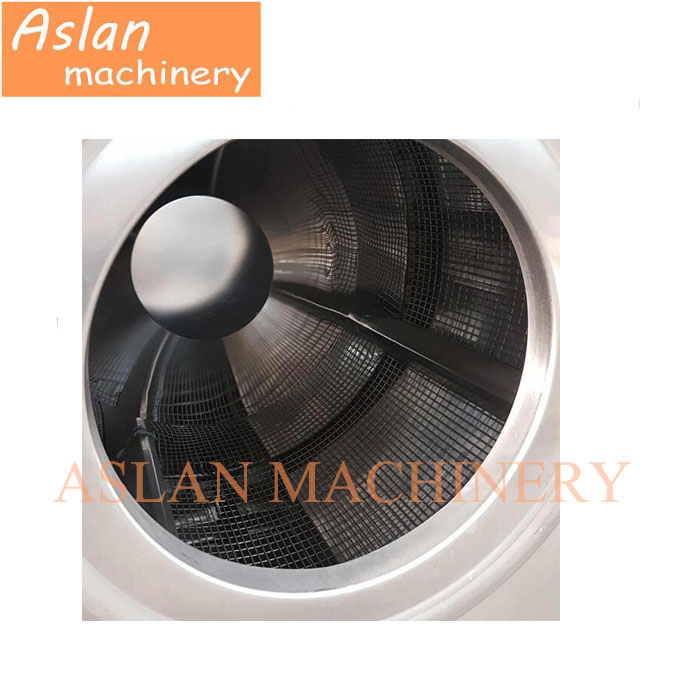

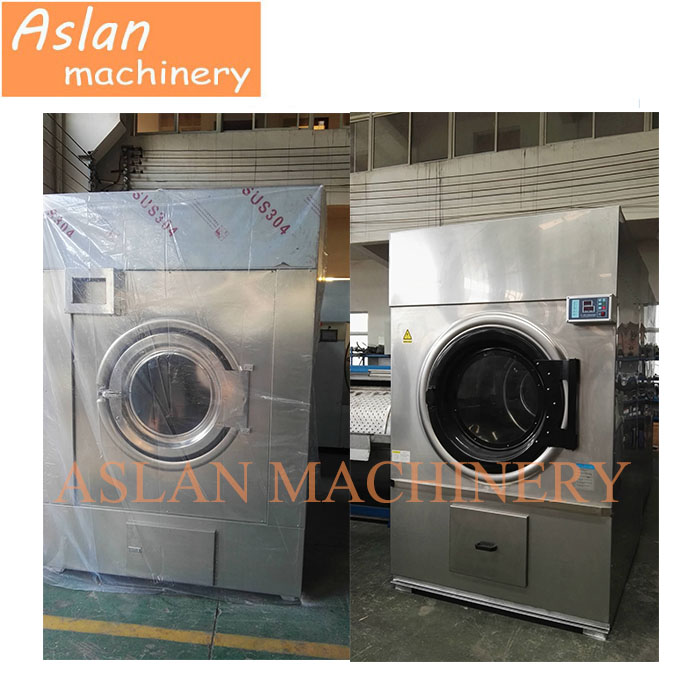

Machine photo:
